9 3/4" (9 3/4"x2.5") Sediment Filters

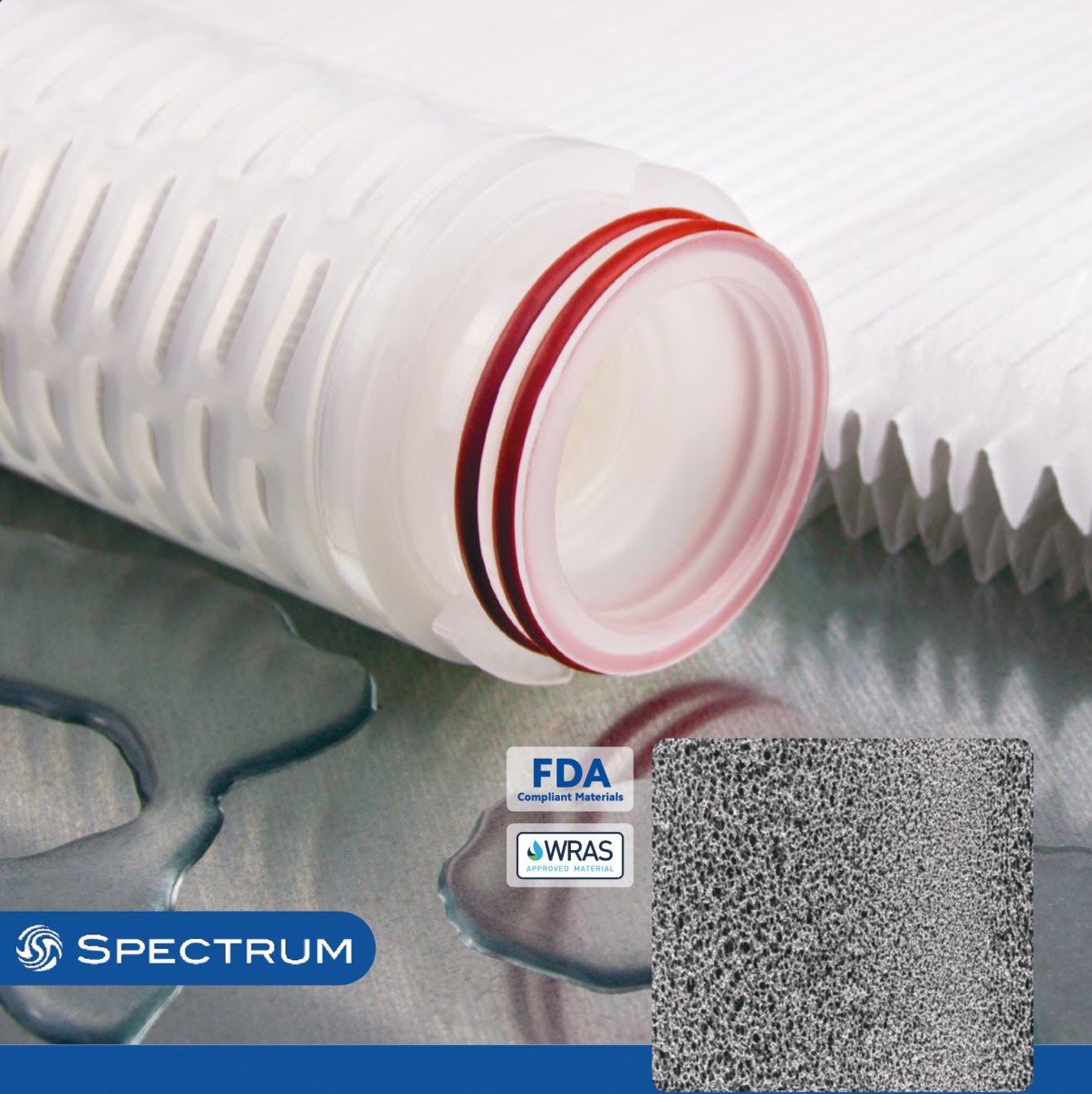

SPECTRUM Premier Pleat Polypropylene Filter 9 3/4'' (0.1 - 100 Micron)

(Ref:934"-PPP)

Each

Unit price
£ 71.00

Box of 6

Unit price
£ 57.50
You save 19%

0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00

0.00 0.00 0.00

Price: £71.00 71.00

Many applications benefit from using the high efficiency, large surface area, low pressure drop and inert properties of the WRAS approved Premier Pleat Polypropylene cartridge. Four pleated media layers combine to construct a pleat pack with depth characteristics and the main filtration media layer delivers high efficiency and exacting micron classification. An improved cage construction for 2018 delivers excellent flow dynamics and is designed to protect the integral pleat pack whilst providing overall rigidity and strength to the cartridge.

Additional information

Material: Polypropylene
Micron: 0.1 to 100
Efficiency (%): 96
Length: 9 3/4"
Diameter: Regular (2.5")
End-Cap: VARIOUS
Seal: Viton
Flow Rate (lpm): 15

Code Numbers: PPP-(micron)-(length) (end cap) (seal)

e.g. PPP-1-9 3/4 AAS

9 3/4" Polyester Pleated Filter (0.5 - 50 Micron)

(Ref:R10-FC-SPPL)

Each

Unit price
£ 10.00

Box of 9

Unit price
£ 7.00
You save 30%

0.00 0.00 0.00 0.00 0.00 0.00 0.00

Price: £10.00 10.00

10" Standard Diameter High Flow Polyester Sediment

Delivering high efficiency filtration, the mono layer media of the Value Ployester Pleat delivers economical filtration with high surface area and high flow potential, whilst maintaining a low pressure drop. Vinyl plastisol end-caps eliminate the need for gaskets and maintain the integrity of the pleat pack, further supported by the tough inner polypropylene core. Resilient polyester media, used in a variety of applications from borehole and river water to harsher chemicals. For improved efficiency and classification capabilities refer to the PRISM Plus and Max Pleat lines

This can be used as an alternative to the Pentek R Series filters.

Additional information

- Material: Polyester
- Micron: 0.5 - 50
- Efficiency (%): 90
- Length: 9 3/4"
- Diameter: Regular (2.5")
- End-Cap: DOE - Double Open Ended
- Flow Rate (lpm): 25

PENTAIR Polydepth Polypropylene Filter 10 micron 93/4"

(Ref:PD-10-93/4-100243)

Each

Unit price
£ 16.00

Box of 24

Unit price
£ 12.80
You save 20%

Price: £16.00 16.00

Pentair Pentek Polydepth Filtration Cartridges are constructed of thermally bonded polypropylene microfibers to ensure high efficiency. The filter incorporates a rigid polypropylene center core for increased collapse strength and durability. This thermal bonded micro-fiber construction has minimal fiber release, consistent flow rate and superior filtration performance. It also is not brittle or prone to breakage problems like resin-bonded cartridges.

Additional information

Material: Polypropylene
Micron: 10
Efficiency (%): 80
Length: 10"
Diameter: Regular (2.5")
End-Cap: DOE - Double Open Ended
Flow Rate (lpm): 15

SPECTRUM Pleat² Polyester Filter 9 3/4" (0.5 - 50 Micron)

(Ref:SPE)

Each

Unit price
£ 15.00

Box of 12

Unit price
£ 12.00
You save 20%

0.00 0.00 0.00 0.00 0.00 0.00 0.00

Price: £15.00 15.00

Delivering high efficiency filtration, the mono layer media of the Pleat2 delivers economical filtration with high surface area and high flow potential, whilst maintaining a low pressure drop. Vinyl plastisol end-caps eliminate the need for gaskets and maintain the integrity of the pleat pack, further supported by the tough inner polypropylene core. Resilient polyester media, used in a variety of applications from borehole and river water to harsher chemicals. For improved efficiency and classification capabilities refer to the SPECTRUM Premier Pleats.

CLICK IMAGE FOR IDENTICAL SPEC - CHEAPER OPTION

Additional information

- Material: Polyester
- Micron: 0.5, 1, 5, 10, 20, 30 and 50 microns
- Efficiency (%): 90
- Length: 9 3/4"
- Diameter: Regular (2.5")
- End-Cap: DOE - Double Open Ended
- Flow Rate (lpm): 25
Code Numbers:

SPE-005-93/4
SPE-01-93/4
SPE-05-93/4
SPE-10-93/4
SPE-20-93/4
SPE-30-93/4
SPE-50-93/4

SPECTRUM Premier Pleat Depth Filter 9 3/4'' DOE/Silicone Gaskets (1-40 Micron)

(Ref:PPDP -)

0.00 0.00 0.00 0.00 0.00 0.00

Price: £120.00

90.00

Buy 9 from only £90.00

Spectrum Premier Pleat Depth Polypropylene Particle Retention Efficiency

The PPDP range is a product development on the popular SPECTRUM Premier Pleat. Designed to combine the science of depth filtration within a pleat format, this increase in layered media and cartridge construction allows for a higher dirt holding capacity over standard pleated cartridges. The PPDP is ideal for applications targeting a wider range of particulate size and those of a softer, more gelatinous form.

Additional information

PRODUCT CODES:
PPDP-1-10
PPDP-3-10
PPDP-5-10
PPDP-10-10
PPDP-20-10
PPDP-40-10

Material: Polypropylene
Micron: 1 to 40
Efficiency (%): 99
Length: 9 3/4"
Diameter: Regular (2.5")
End-Cap: AA - Open Gaskets
Seal: Silicone
Flow Rate (lpm): 15

SPECTRUM Premier Pleat PES Filter 93/4" (0.1 - 0.65 micron) DOE/Silicone Gaskets

(Ref:PPPES-0.??-93/4AAS)

0.00 0.00 0.00 0.00

Price: £185.00 185.00

Manufactured using German engineered and produced high quality polyethersulfone media, the SPECTRUM PPPES provides assured and certified absolute bacteria retention characteristics. Lot coded and 100% individually tested, the high surface area media contains no adhesives or binders, with low extractable content offering consistent final product quality. Meeting industry standard requirements, the cartridges are WRAS approved, FDA Title 21 Compliant and meet USP Class VI-121 DegC Plastics.

10" Length
Available in 0.1, 0.2 ,0.45, and 0.65 microns (choose)

Additional information

Material: Polyethersulfone
Micron: 0.1
Efficiency (%): 99.99999
Length: 9 3/4"
Diameter: Regular (2.5")
End-Cap: AA - Open Gaskets
Seal: Silicone
Flow Rate (lpm): 15

Code Numbers: PPPES-(micron)-(length)

e.g. PPPES-0.2-93/4-FHS

VEOLIA PURTREX Polypropylene Filter 9 3/4" (various micron)

(Ref:PX97/8)

Each

Unit price
£ 7.00

Box of 40

Unit price
£ 5.60
You save 20%

0.00 0.00 0.00 0.00 0.00 0.00

Price: £7.00 7.00

The Purtrex depth filter, is an exceptional value for general applications where long life, high purity and low change-out frequency are required. Produced through VEOLIA's patented melt blown microfiber technology, Purtrex is a 100% pure polypropylene depth filter with exceptional dirt-holding capacity.

Additional information

- Material: Polypropylene
- Micron: various
- Efficiency (%): 75
- Length: 9 7/8"
- Diameter: Regular (2.5")
- End-Cap: DOE - Double Open Ended
- Flow Rate (lpm): 15

Product codes:

PX01-93/4........01 micron - 9 3/4"
PX05-93/4........05 micron - 9 3/4"
PX10-93/4........10 micron - 9 3/4"
PX20-93/4........20 micron - 9 3/4"
PX50-93/4........50 micron - 9 3/4"
PX75-93/4........75 micron - 9 3/4"

Wound Polypropylene Filter 9 3/4" (1 to 100 micron)

(Ref:FC-DWPP-R-93/4)

0.00 0.00 0.00 0.00 0.00

Price: £5.50

3.00

Buy 16 from only £4.00

Buy 48 from only £3.00

The most popular wound cartridge media by far, the PRISM wound polypropylene offers broad chemical compatibility and good temperature resistance at low cost. With over 50 years proven experience and in a variety of micron sizes, across regular and large diameters, the DWPP provides a basic filtration solution perfectly suited for first-stage and general particulate reduction. Whilst newer spun technologies offer higher efficiency and longer life cartridges, wounds still exceed filtration standards in many applications.

Additional information

- Material: Polypropylene
- Micron: 0.5, 1, 5, 10, 25, 50, 75, 100, 150
- Efficiency (%): 65
- Length: 9 3/4"
- Diameter: Regular (2.5")
- End-Cap: DOE - Double Open Ended
- Flow Rate (lpm): 15
Old Product Codes:

e.g SWP-5-10 (10" x 2.5" - 5 micron)
SWP-5-20 (20" x 2.5" - 5 micron)
