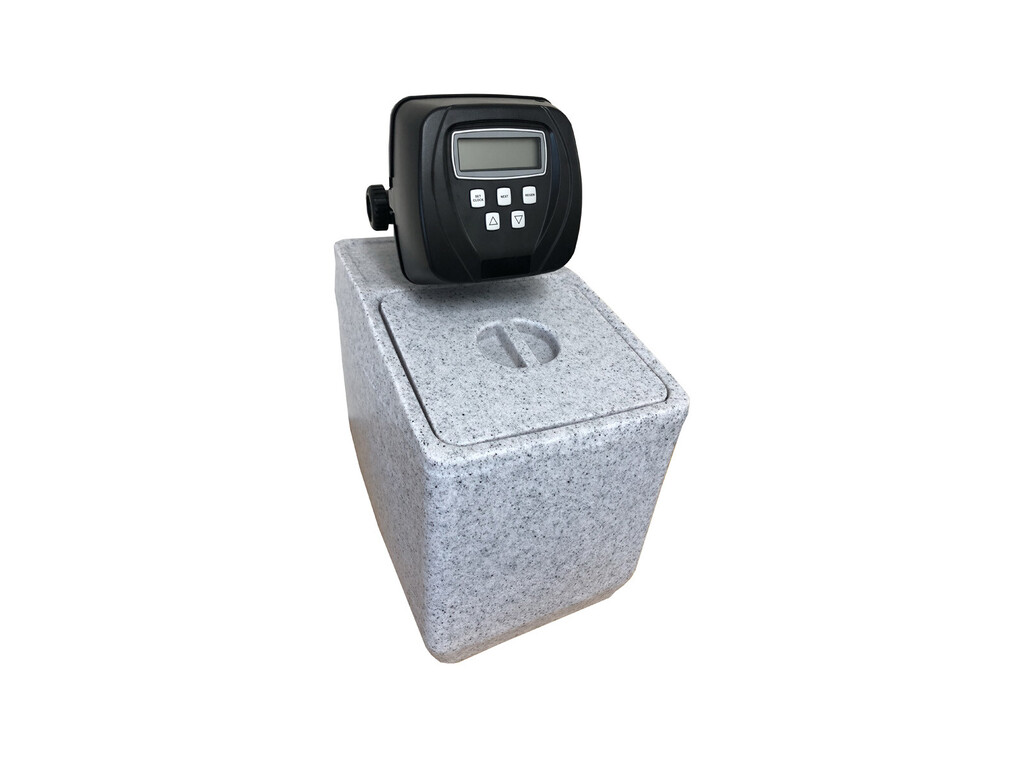

The Coral is an extremely popular domestic water softener which features the very reliable Clack valve. Available in timer or meter configurations a stylish, softener which fits well into any utility room or kitchen. The Coral water softener can be adjusted to the exact hardness level of the water in your local area, making it efficient and saving you money.
Dimensions: H: 581 mm W: 280mm D: 490mm
Technical specifications: Connections Inlet/Outlet 3/4" BSP male parallel Drain 1/2" Hose Connector Overflow 1/2" Hose connector Operating Parameters: Max operating Pressure 8 bar (116 p.s.i ) A 5 bar pressure limiting valve should be installed to protect the machine from excessive pressure Min Operating Pressure 1 bar (14.5 p.s.i ) Max water temperature 30 degree C Min water temperature Protect from freezing Transformer-13amp/ 12V Softener Resin volume 1x 10 litres Salt Storage capacity 20Kg tablet salt 1706Ltr per cycle Capacity per regen at 300ppm hardness 900 gm Salt used per regeneration 65% Salt efficiency 50 litres / min peak flow at 2 bar pressure drop 30 litres / min Rated service flow at 1 bar pressure drop 76 litres Water used per Regeneration 1.9 1/ min Maximum flow rate to drain 72 Minutes Maximum Regeneration Time < 1mg per litre Softened water hardness
